Types of Pressure Gauge

WPS Open Front Process Pressure Gauge:

✓ WPS Process Pressure Gauge
✓ Size : 63mm, 100mm, 115mm, 150mm, 250mm
✓ Accuracy : 1 % , optional 0.5 % (150mm, 250mm)
✓ Range : Vac to 36000 psi, Vac to 2500 bar
✓ Material : SS316, SS316L, Monel, Ni Span

GFS Industrial Pressure Gauges:

GFS Heavy duty Industrial Pressure Gauges welded design for Hydraulic. Variety of OEM applications.
✓ Size : 63 mm, 100 mm
✓ Accuracy : 1.6 % (63 mm) and 1 % (100 mm)
✓ Range : Vac to 23000 psi, Vac to 1600 bar
✓ Material : SS316, SS316L

SFS Solid Front Process Pressure Gauge

SFS, Solid Front Process Pressure Gauge
✓ Size : 100mm, 115mm, 150mm
✓ Accuracy : 1 % , optional 0.5 % (150mm)
✓ Range : Vac to 36,000 psi, Vac to 2500 bar
✓ Material : SS316, SS316L, Monel, Ni Span

WPP Solid Front Process Pressure Gauge

WPP, Solid Front Process Pressure Gauge
✓ Size : 115mm
✓ Accuracy : 0.5 % Grade 2A
✓ Range : Vac to 36000 psi, Vac to 2500 bar
✓ Material : SS316, SS316L, Monel

ZPS Process Pressure Gauge

ZPS Process Pressure Gauge
✓ Size : 100mm, 115mm, 150mm
✓ Accuracy : 1% , optional 0.5% (150mm, 250mm)
✓ Range : Vac to 15000 psi, Vac to 1000 bar
✓ Material : SS316, SS316L, Monel

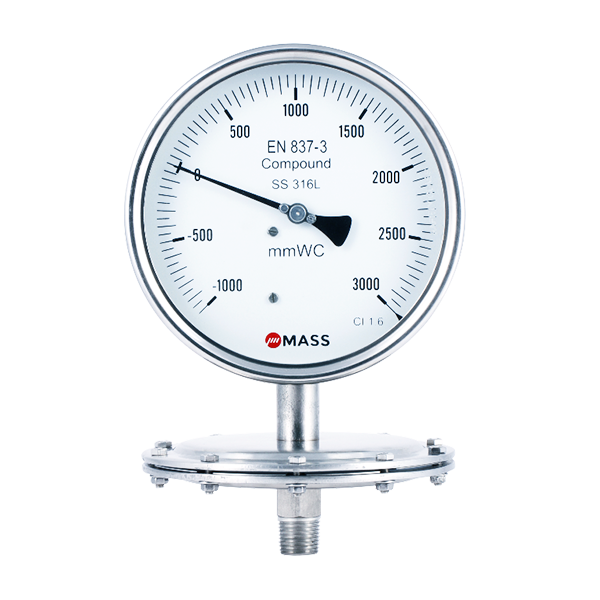

SDS Low Pressure Diaphragm Pressure Gauges

SDS, Low Pressure Diaphragm Pressure Gauge
✓ Size : 100mm, 150mm
✓ Accuracy : 1.6 %
✓ Range : ± 25 mbar to 2.5 bar , ± 10 IW to 30 psi
✓ MMaterial : SS316, SS316L, PTFE

CPS Low Pressure Capsule Gauges

CPS Stainless Steel Capsule Gauges for low pressure measurements suitable for clean gas and vapor pressure measurement.
✓ Size : 63mm, 100mm, 115mm, 150mm
✓ Accuracy : 2 %
✓ Range : ± 2.5 IW to 160 IW, ± 6 mbar to 400 mbar
✓ Material : SS316

CPB Low Pressure Capsule Gauges

Mass® CPB Brass Capsule Gauges fulfill the need for low pressure measurements suitable for clean gas and vapor pressure measurement.
✓ Size : 63mm, 100mm, 115mm, 150mm
✓ Accuracy : 2 %
✓ Range : ± 2.5 IW to 160 IW, ± 6 mbar to 400 mbar
✓ Material : Brass

GES Compact Industrial Pressure Gauges

GES is a compact gauge which offers complete welded design for hydraulic, pneumatic, refrigeration and variety of OEM applications.
✓ Size : 100mm
✓ Accuracy : 1.6%
✓ Range : Vac to 10000 psi, Vac to 700 bar
✓ Material : SS304

GFB Industrial Pressure Gauges

GFB Industrial pressure gauges offers rugged construction for hydraulic, pneumatic and variety of OEM applications.
✓ Size : 63mm, 100mm
✓ Accuracy : 1.6 %
✓ Range : Vac to 6000 psi, Vac to 400 bar
✓ Material : Brass, SS316

PG 120 Utility Pressure Gauge

PG120 Utility Pressure Gauge
✓Size : 40mm, 50mm, 63mm
✓ Accuracy : 2.5%
✓ Range : Vac to 6000 psi, Vac to 400 bar
✓ Material : Phosphor Bronze, Brass, SS316

PG 121 Utility Pressure Gauge

PG121 Utility Pressure Gauge
✓ Size : 100mm, 150mm, 250mm
✓ Accuracy : 2.5%
✓ Range : Vac to 10,000 psi, Vac to 700 bar
✓ Material : Phosphor Bronze, Brass
